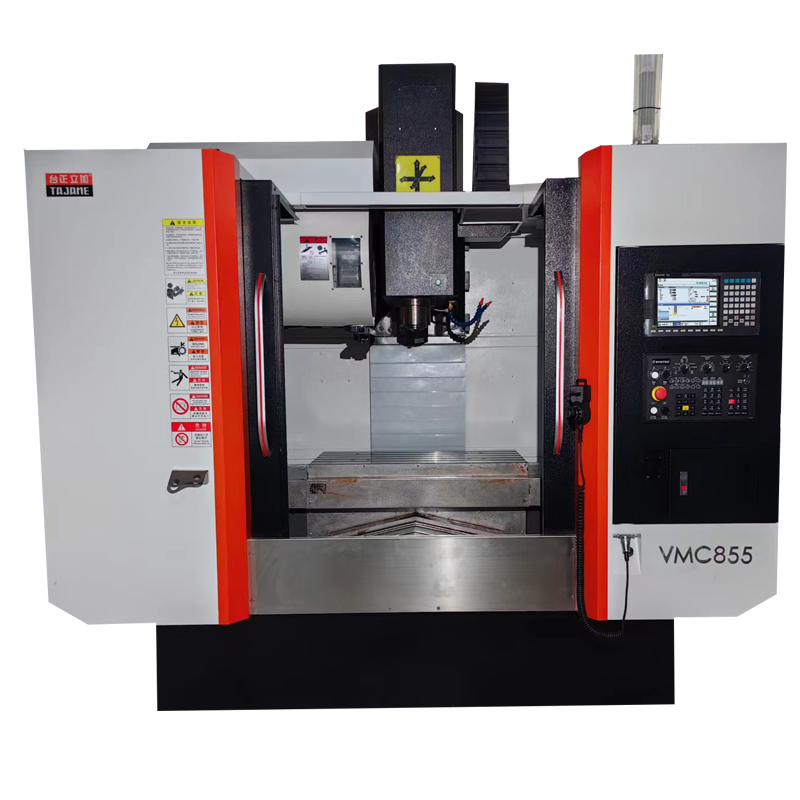

CNC VMC-855 Vertical Machining Center
TAJANE verticalis series ad machinationem centrum maxime idoneae sunt ad partes complexas expediendas ut laminas, discos, formas et conchilia parva.Machina verticalis centrum processus complere potest molendi, taediosum, exercendi, percutiendi et incisionis sequelae.
Product usus
Machinatio centrum verticalis, adhibenda est ad praecisionem partium 5G productorum machinis.
Verticalis machining centrum occurrit batch processus partium testaceorum.
Ille centrum machining verticalis percipere potest batch processus partium auto- rarum.
Machinatio centrum verticalis percipere potest altam celeritatem machinationem partium cistae.
Verticalis machining centrum plene occurrit processui partium formarum variarum
Product mittentes processus
CNC VMC-855 machinis centrum verticalis, ejectio processum mittentes Meehanite adoptat, et titulus est TH300.
CNC verticalis machinis centrum, interior pars iectionis in costa duplicata craticulae formata structuram induit.
CNC machinis verticalis centrum, arca fusum consilium optimized et rationabilem intentionem assumit.
Nam CNC machinatio centra, lectus et columnae naturaliter deficiunt, meliori subtilitate machinæ centrum.
CNC machinis verticalis centrum, tabulae crucis lapsus et basis, obviam incisis gravibus et celeri motu
Boutique Parts
Subtilitas conventus inspectionem processus imperium
Workbench Accuracy Test
Opto-Mechanical Component Inspection
Verticality Deprehensio
Parallelismus Deprehensio
Nux Sedes Accuracy Inspectionis
Angulus Deviatio Detection
Configurare notam CNC system
TAJANE verticalis machinae instrumentorum machinarum machinatio, iuxta mos necessarios, varias notas systematis CNC praebent ut varias necessitates ad centrum machinarum verticalium, FANUC, SIEMENS, MITSUBISH, SYNTEC, LNC.
Plene inclusum packaging, praesidii causa translationem
Plene inclusum ligno packaging
CNC VMC-855 centrum machinis verticalis, sarcina plene inclusa, praesidii vecturae
Vacuum packaging in arca
CNC VMC-855 centrum machinis verticalis, umore probatione vacuum intra cistam packaging, ad longum spatium vecturae aptum.
Patet signum
CNC VMC-855 centrum machinis verticalis, notis claris in capsula sarcina, iconibus onerandis et exoneratis, exemplar pondus ac magnitudinem, ac altam recognitionem.
Lignum solidum deorsum bracket
CNC VMC-855 machina verticalis, imo capsula fasciculi e ligno solido, quod durum est et non-lapsum, figit ad bona claudenda.
| Model | Unitas | VMC-855 | |
| ITER | X x Y x Z axis | mm (inch) | 800 x 550 x 550 (31.5 x 21.65 x 21.65) |
| Fusum nasum ad mensam | mm (inch) | 120~670 (4.72~26.38) | |
| Fusum centrum ad solidum columna superficies | mm (inch) | 590 (23.23) | |
| MENSA | operantes area | mm (inch) | 1000×550 (39.37 x 21.65) |
| Maximilianus.loading | kg | 500 | |
| T-Slots (No. x Latitudo x Pice) | mm (inch) | 5-18 x 90 (5-0.709 x 3.54) | |
| FUCUS | instrumentum scapus | - | BBT-40 |
| Celeritas | rpm | 8000 | |
| Transmissio | - | Cingulum Coegi | |
| Atferens lubrication | - | Grease | |
| Systema refrigerandum | - | Oleum refrigeratum | |
| Fusum potentiae (continua / cultro) | kw(HP) | 7.5 (11) | |
| Rates CIBARIUM | Celerat in X & Y & Z axis | m/min | 36/ 36/36 |
| Maximilianus.sectione feedrate | m/min | 10 | |
| INSTRUMENTUM MAGAZINE | Instrumentum repono facultatem | pcs * | 24arm |
| Genus instrumentum (libitum) | type | BBT-40 | |
| Maximilianus.instrumentum diametri | mm (inch) | 78 (3.07) arm | |
| Maximilianus.instrumentum ponderis | kg | 7 | |
| Maximilianus.instrumentum longitudinis | mm (inch) | 300 (11.8) arm | |
| AVG.CHANGING TEMPUS | Instrumentum ad instrumentum | sec. | 2.5 |
| Aeris fons requiratur | kg/cm² | 6.5up | |
| CURA | Positioning | mm (inch) | ±0.005/300 (±0.0002/11.81) |
| Repeatability | mm (inch) | 0.006 porrectus (0.000236) | |
| DIMENSIONE | Machina pondus (Net) | kg | 5,400 |
| Virtus fons requiritur | KVA | 15 | |
| Area spatium (LxWxH) | mm (inch) | 2,665 x 2484 x 2,800 (104.92 x 97.8 x 110.24) | |
Standard configurationis
Mitsubishi M80 controller
●Spindle celeritatem 8,000 / 10,000 RPM (pendent in exemplar apparatus)
Automatic instrumentum mutante
plena adipiscing custodibus
Astus exchanger ad electrica scrinium
Automatic lubricating ratio
Spindle aeris inspiratione ratio (M codice)
Spindle aer velum
Spindle sexualis
Coolant gun et aere nervum
adtritio rhoncus
● Enchiridion & venarum generans removeri (MPG)
DUXERIT lux
Rigidum percussoque
Coolant ratio et tristique
Cycle metam indicator ac terror luminaria
Tool Box
Operational et sustentationem manual
Transformer
Spindle anulum coolant (M codice)
Ad libitum Accessories
●Spindle celeritate 12000 RPM (Cingulum genus)
●Spindle celeritatem 15,000 RPM (Direct coegi)
Coolant per fusum (CTS)
●Controller(Fanuc/Siemens/Heidenhain)
German archa ZF calces
Automatic instrumentum longitudo mensuræ fabrica
Automatic operis pars mensurae ratio
CNC gyratorius mensa et tailstock
Oleum skimmer
Link / Cochlea genus chip TRADUCTOR cum chip situla
Linear squamae (X / Y / Z axis)
Coolant per instrumentum possessor
